ELECTRONIC SWITCHING PRODUCTS

When paired with the CLTM12-S-Series load controller, these CAN-based, SAE J1939 compatible electronic switching controls provide a myriad of options for integrating digital switching systems for transportation applications. These fully customizable and programmable switches feature programmable illumination, diagnostic feedback, and extended life. Multiplexing is made easy by the use of rear-mounted Deutsch® connectors, eliminating the extra weight and cost of traditional wire harnesses.

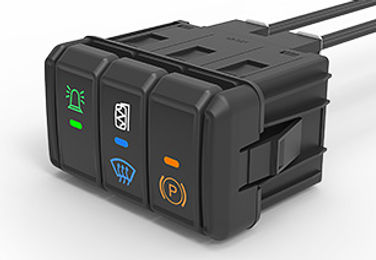

CM - Series


Multiplexed CAN/LIN switching system.

Features a three compartment LIN switch module for uniquely identifiable

switches and rheostats with a CAN interface controller module.

Controller module allows for 45 switch functions

Compliant with SAE J1939 CAN standards, the CKP-Series is a customizable
keypad featuring laser etched legends and up to three dimmable LED light
indicators per button, which also offer diagnostics feedback.

CKP - Series


The VM-Series is a multiplexed operator control module

ideal for the Construction Agriculture and Commercial vehicles.

Rugged and sealed to IP68, the VM-Series can be used in open or closed

cab environments and it connects to industry standard SAE J1939

CAN bus protocol.

VM - Series


The CKJ-Series jog switch features a joystick rotary encoder with push-to-select button and 5 customizable function buttons with dimmable lighting. This CAN J1939 compatible display controller is sealed to IP67 standards and can be configured in a variety of orientations providing simple installation and connectivity.

CKJ - Series
